Product Detail

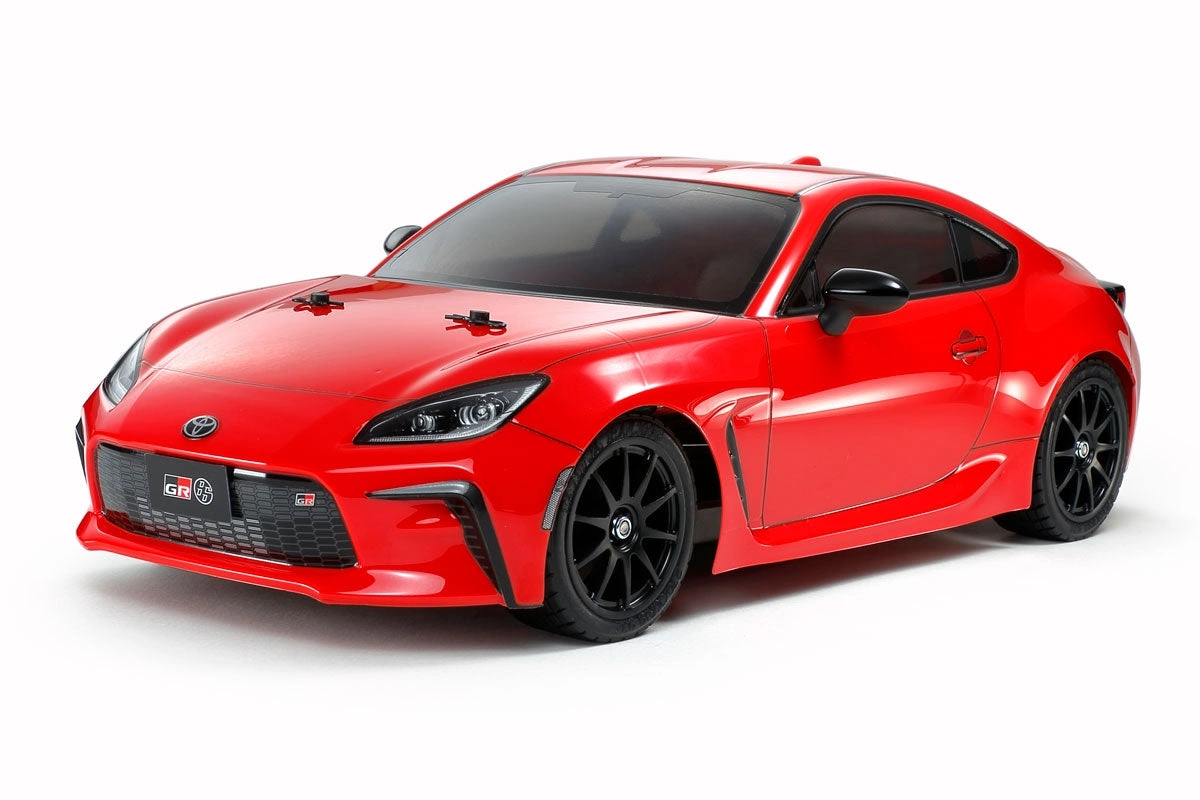

This Tamiya R/C kit recreates the Toyota GR 86 as a 1/10 R/C product. The Toyota GR 86 is a lightweight front- engine, rear-wheel-drive sports car which was announced in April 2021. It has a broad stance, low center of gravity, and employs aerodynamic components rooted in motorsports. The aluminum engine hood, roof and front fenders are lightweight and the suspension features front strut and rear double wishbone systems. This car is powered by a 2.4-liter horizontally opposed four-cylinder DOHC engine capable of 235hp.

Adaptable TT-02 Chassis offers balanced shaft driven 4WD
The shaft driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to offer excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports.

Required to Complete

• 2-channel radio
• Steering servo
• 7.2volt battery
• Compatible charger
• Tamiya PS paint
• Assembly, painting, and assembly tools required

Features

• Headlight cases are separate polycarbonate parts, and give a super realistic look with stickers applied
• The air intakes which sandwich the front bumper on either side are also depicted with authenticity by stickers
• The Functional Matrix Grille is also depicted using a sticker; the license plate is cut out of polycarbonate
• Side mirrors use two types of black (bottom: semi-gloss); mirror surfaces are also cut out of polycarbonate

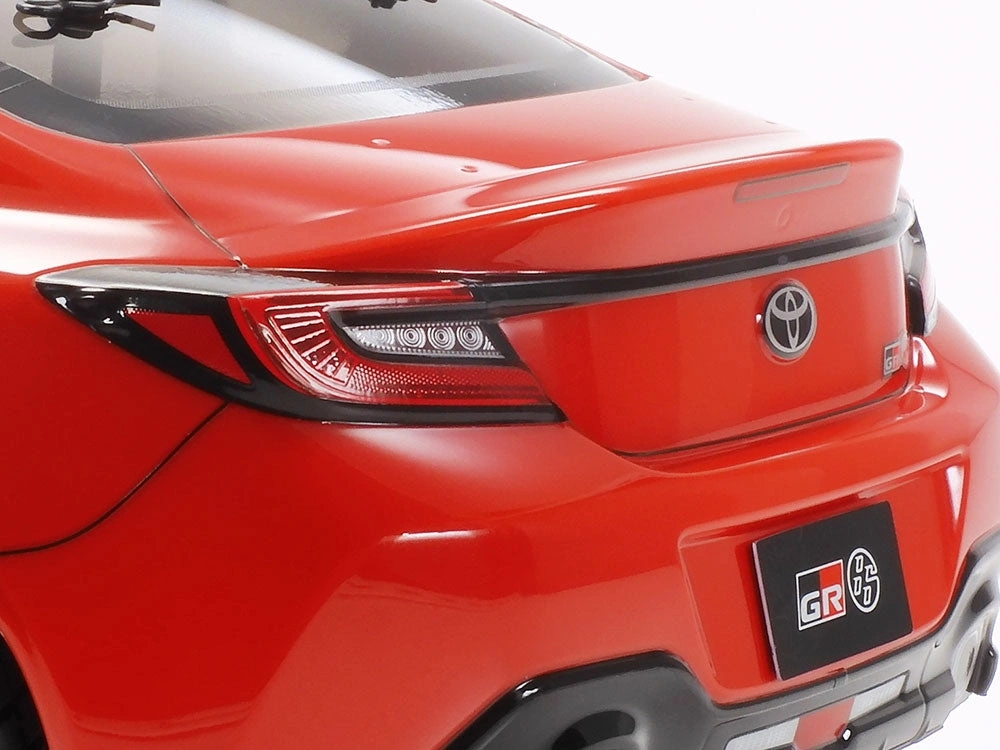

• The duckbill trunk lid is an eye-catcher. Rear combination lamps are separate polycarbonate parts

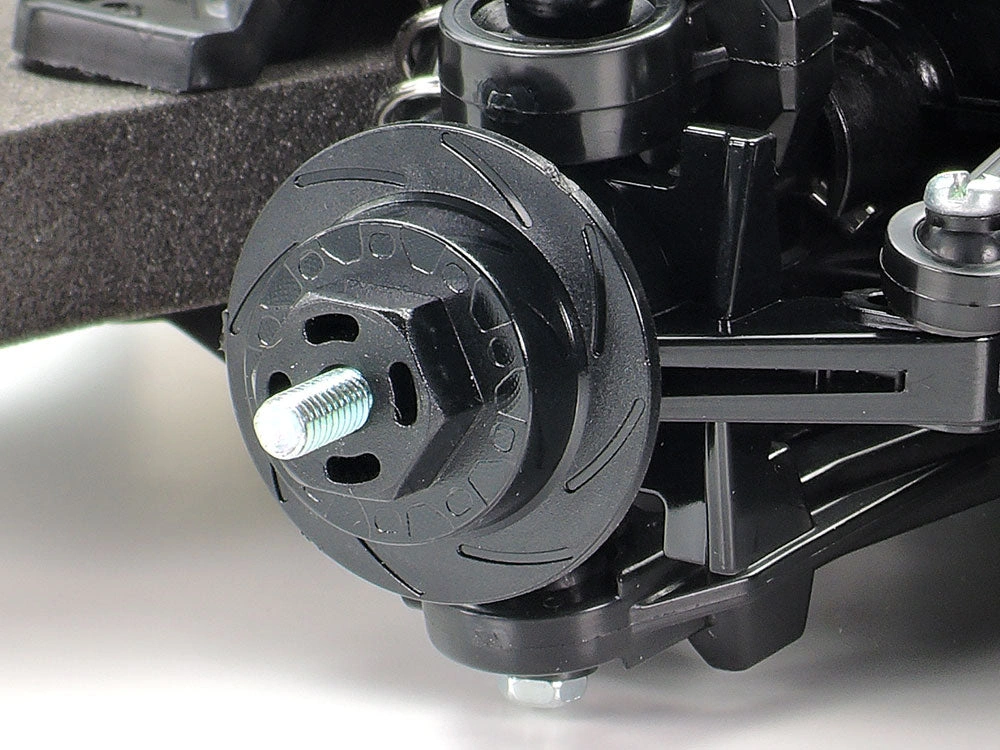

• Wheel hubs are shaped to look like brake discs
• Resin ball links in the steering linkage joints make for smooth, comfortable motion
• Motor cover includes removable cooling duct
• This image gives a closer look at the rear double-wishbone suspension with friction dampers
• Black 10-spoke one-piece wheels are paired with racing radial tires.
• Body requires painting, cutting out, attachment of parts, application of stickers, and other work.

Specifications

• Construction Type: Assembly Kit
• Chassis Type: TT-02
• Length: 428mm, width: 188mm, height: 131mm
• Wheelbase: 257mm
• Tire width/diameter: 27/67mm (front & rear)
• Bathtub-type frame
• Shaft-driven 4WD
• Front/rear 4-bevel resin differentials
• 3-piece steering tie-rod
• 4-wheel double wishbone suspension
• Front/rear friction dampers
• Gear ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions)
• Type 540 motor
• Includes HobbyWing THW 1060 Brushed Motor ESC (2-3S)
